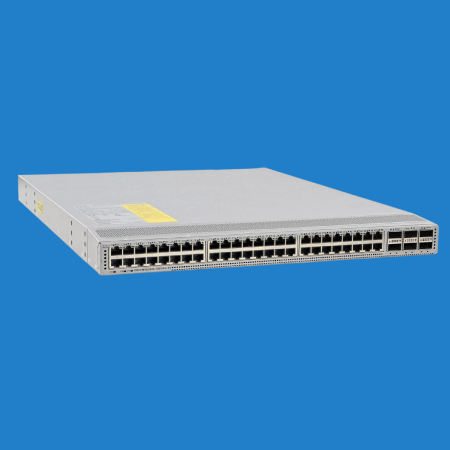

Cisco Nexus C93108TC-FX Switch
Brands: Cisco
₹80,999.00 ₹85,212.00
5%
OFF
Inclusive of All the taxes
Quantity
Delivery
Key Features
| Downlink : | 48 × 100M/1G/10GBASE-T |
| Uplink : | 6 × 40/100G QSFP28 |
| Bandwidth : | 2.16 Tbps |
| Memory : | 24 GB RAM |
| Storage : | 128 GB SSD |
| Power : | Dual AC/DC PSU |
Description
Technical Specifications
| Category | Specification |
|---|---|
| Model / SKU | Cisco Nexus N9K-C93108TC-FX |
| Form Factor | 1U Rack-mountable |
| Dimensions (W × D × H) | 17.3 × 22.5 × 1.72 in (43.9 × 57.1 × 4.4 cm) |
| Weight | 7.9 kg |
| CPU | 4-Core Processor |
| System Memory (RAM) | 24 GB |
| Internal Storage | 128 GB SSD |
| Buffer Memory | 40 MB |
| Downlink Ports | 48 × RJ-45 (100M/1G/10GBASE-T) |
| Uplink Ports | 6 × QSFP28 (40G / 100G) |
| Management Ports | 1 × RJ-45 Mgmt, 1 × SFP+ Mgmt |
| Console Ports | 1 × RS-232 Serial, 1 × USB |
| Switching Capacity | 2.16 Tbps |
| Forwarding Rate | >1.25 Bpps |
| Power Supply Options | Dual PSU: 500W AC / 930W DC / 1200W HVAC-HVDC |
| Typical Power Consumption | ~276 W |
| Max Power Consumption | ~460 W |
| Operating Temperature | 0°C to 40°C |
| Humidity | 5%–90% (non-condensing) |
| Software Mode | NX-OS / ACI Compatible |
| Use Case | Data Center Leaf Switch, Server Access, High-density 10G deployments |
