USB Console Cable UART Serial Cable Essential Accesory of Cisco, NETGEAR, Ubiquity, LINKSYS, Routers/Switches for Laptops in Windows, Mac, Linux（Black,6ft

About this item

• Replaces RS232 (DB-25/DB-9) serial port perfectly, connects to any laptop/PC's USB port directly to a console port like a charm. No more RS232 Female and male adapters; Note:This is a "UART Serial Cable," then it only transfers UART computer data. NOT ethernet,

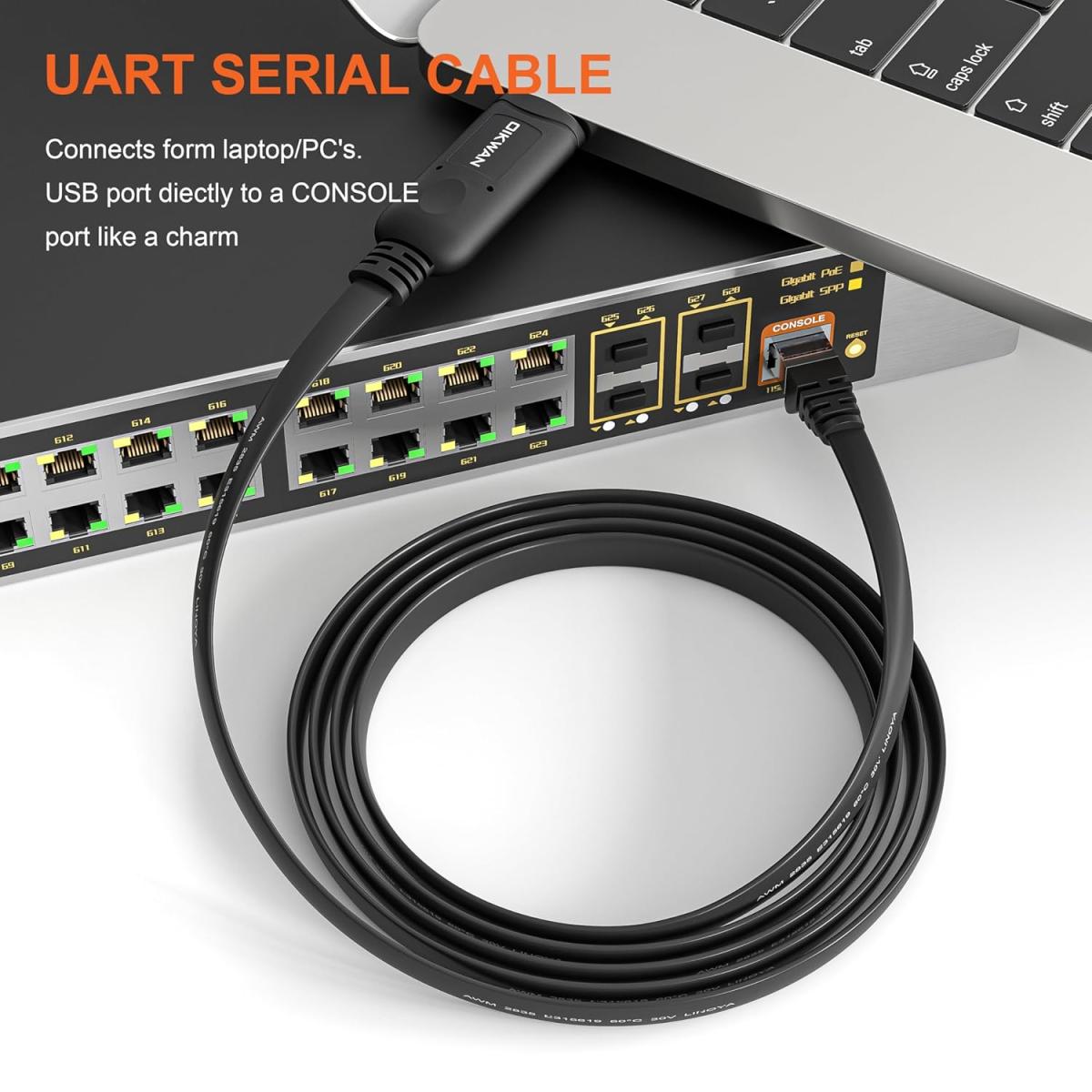

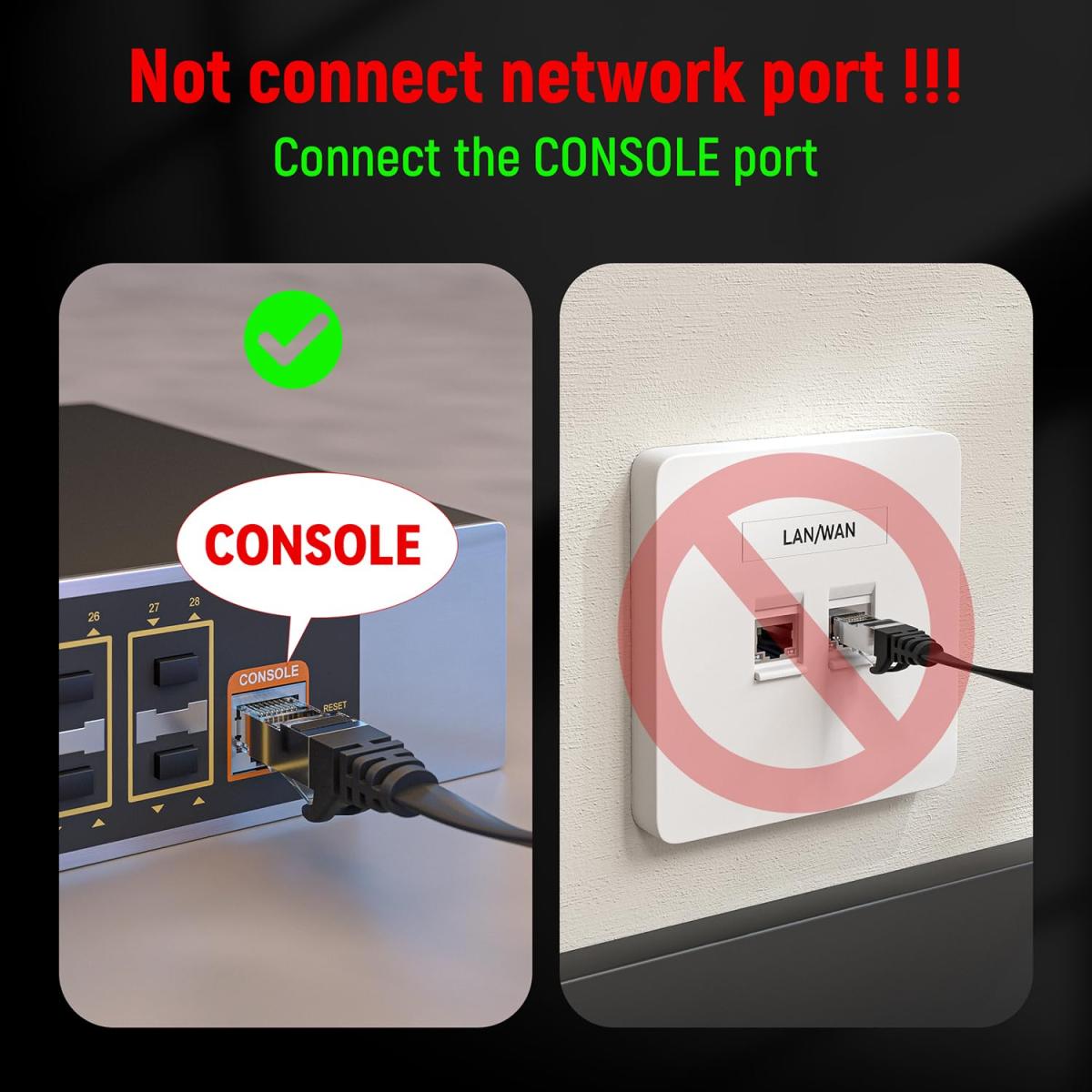

• USB to RJ45 Console cable directly connects a computer or laptop through USB port to Network Switch, Router etc. with a Console port. No RS232/DB9 adapter needed. Note: This is a Console Cable, This is a "UART Serial Cable,"
• USB serial cable to pair with branded Router, Switch, Firewall, Wireless LAN controller and other devices with console port, such as Cisco, Ubiquiti, Ubiquiti, Linksys, Juniper, Fortigate, Mikrotik, ProCurve. Powered by USB port, no external power adapter required.

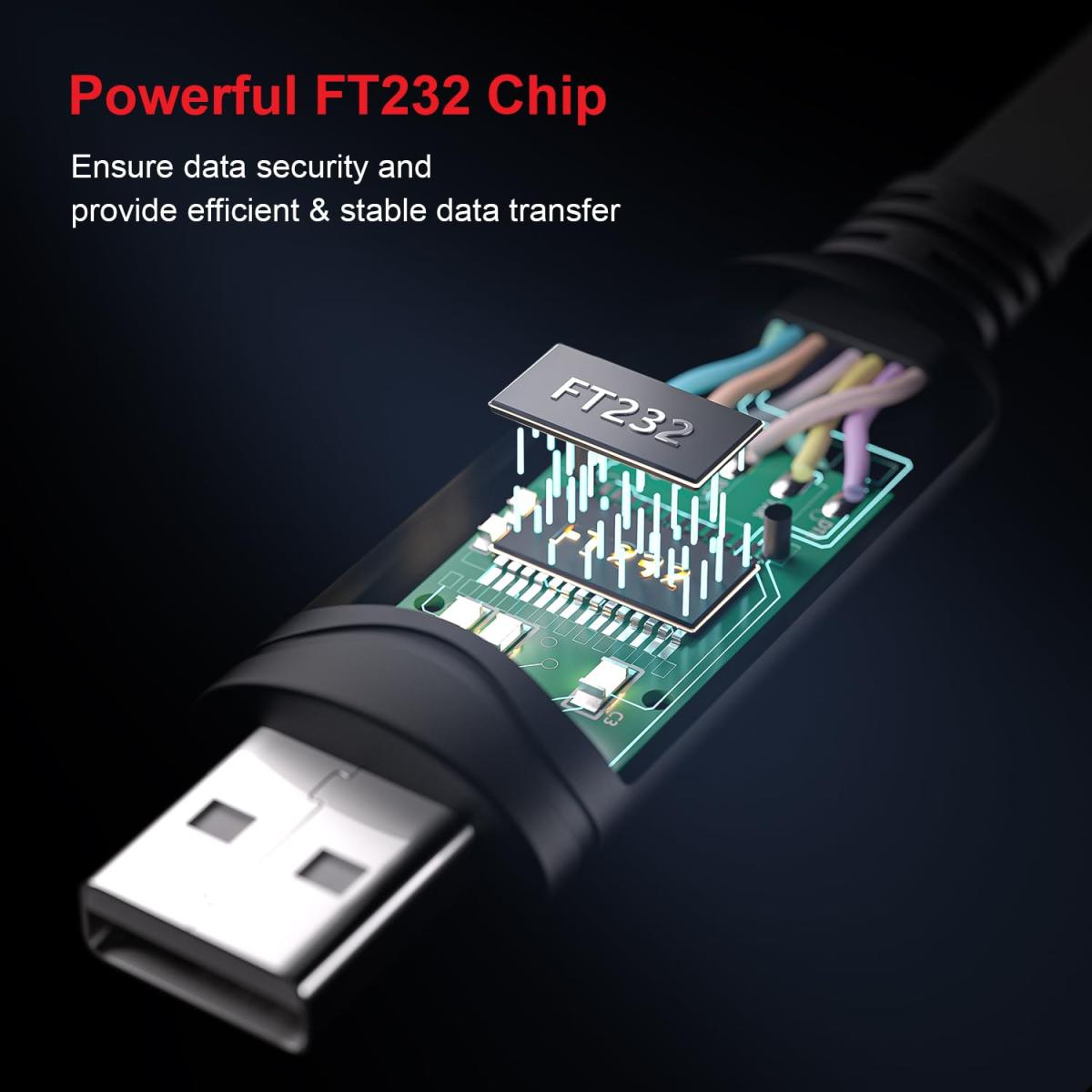

• USB rollover cable uses the FT232rl chip imported from the UK FTDI Company and the most advanced manufacturing technology to make the product more stable and reliable. It can support a variety of super terminals. Please choose according to your personal habits

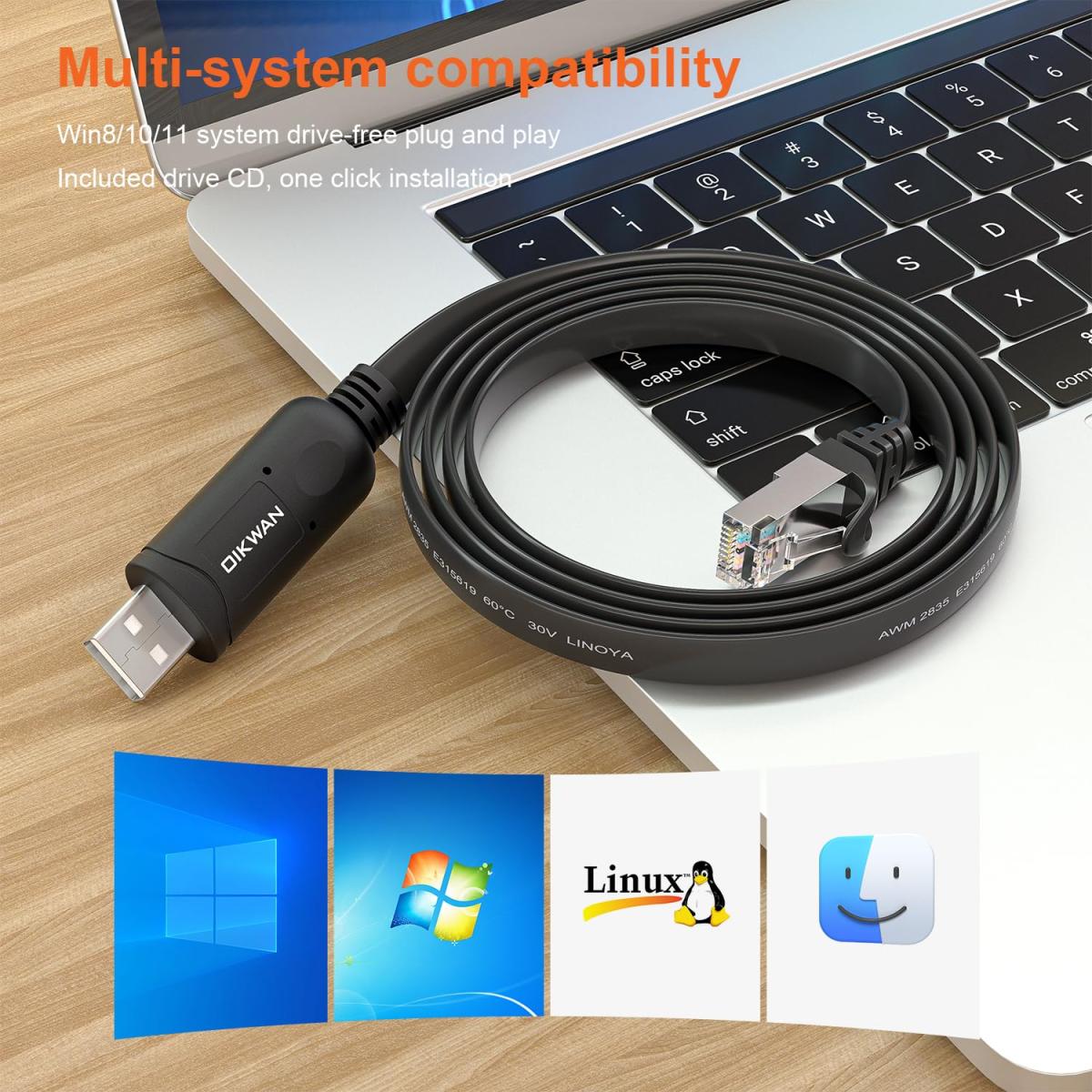

• Full support for 32-bit and 64-bit Windows, MAC OS, Linux and Android, except Chrome OS. For details of OS compatibility, please scroll down this page and take a look at 'Product description'

Product Description

MICROWARE UART serial cable ,USB TO RJ45 Console Cable Black/Blue

USB to RJ45 cable using RS-232 specification, compatible with Cisco, Huawei, H3C, ZTE, and other routers/ switches debugging communication. Replaces RS232 (DB-25/DB-9) Serial port perfectly, connecting any laptop/PC's USB port directly to a console port like a charm.

Wide Compatibility

No more RS232 Female and male adapters Rollover cable reverses all 8 pins to connect from a computer to a network switch. Console Cable USB to RJ45 is a must-have for all you network engineers out there. Say goodbye to the hassle of DB-9 adapters and embrace a seamless connection experience.

Supported Operating Systems

USB to RJ45 Console cable directly connects a computer or laptop through USB port to Network Switch, Router with a Console port. No RS232/DB9 adapter needed. Console cable usb to rj45 compatible with Mikrotik, ProCurve, H3C, ZTE, Router, Modem, Server Cisco, TP-Link, Linksys, Juniper, FortiGate.

The USB to RJ45 Console cable contains a chip which converts a USB port into an RS-232 Serial port. This is independent of the device being configured. Therefore the cable should work with console or aux port from any vendor. The trick is to configure PuTTY, Minicom or Screen for the correct output.

High Quality

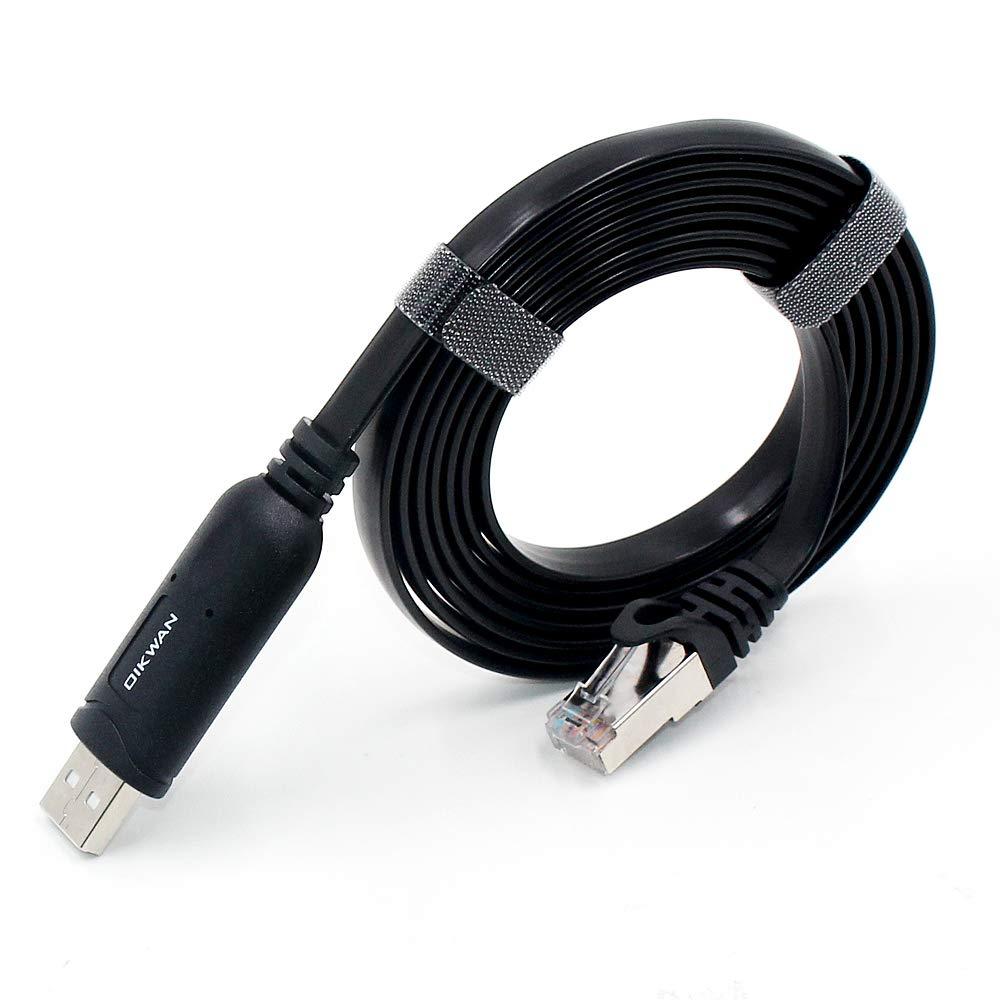

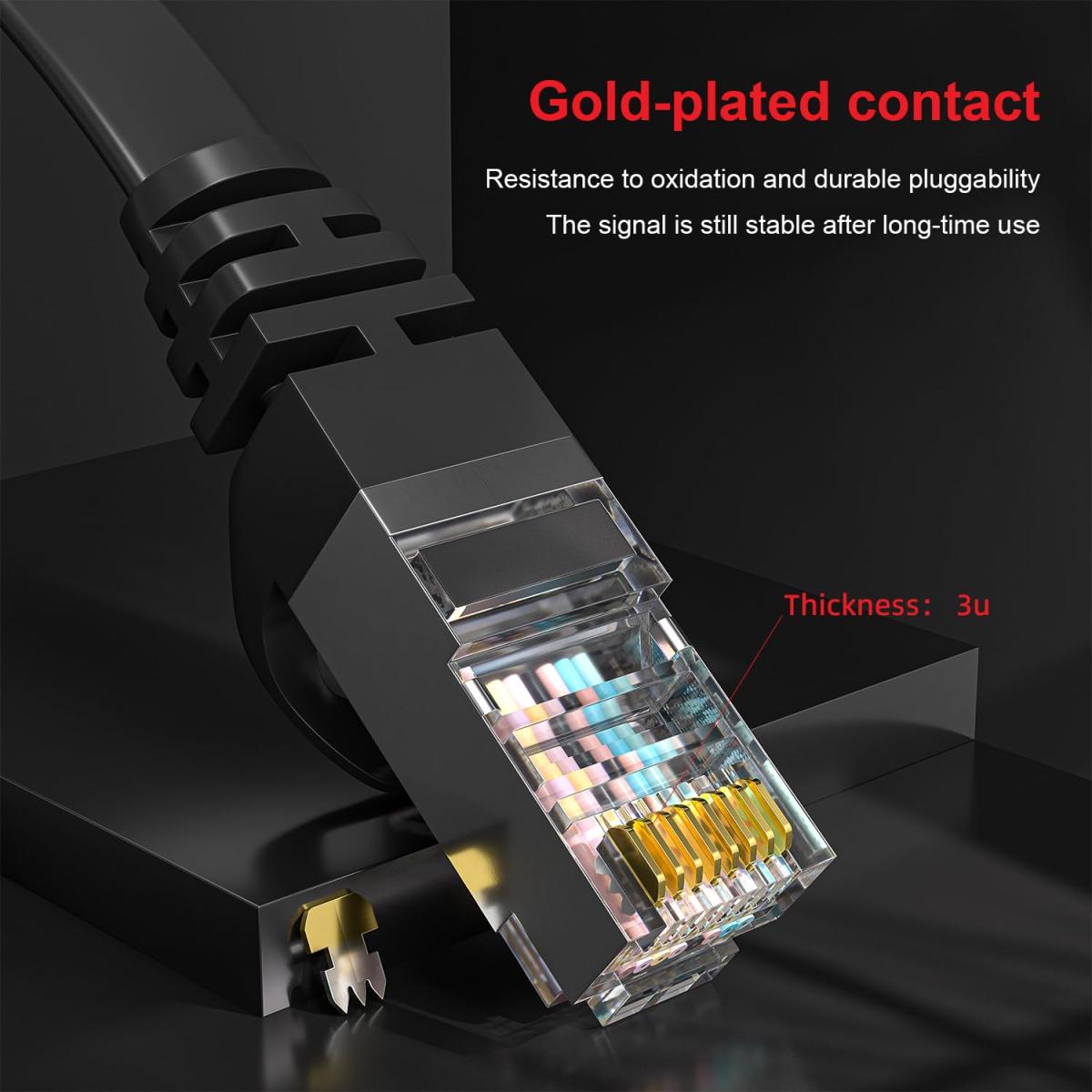

Flat and slim flexible cable ( 32AWG) for easy storage in a tablet or laptop case. Gold plated connector, molded SR and bare copper conductors for durability and fast data transmission. Unparalleled connection stability. Higher transmission speed-up to 500kbaud, more efficient work

UART Serial Console Cable

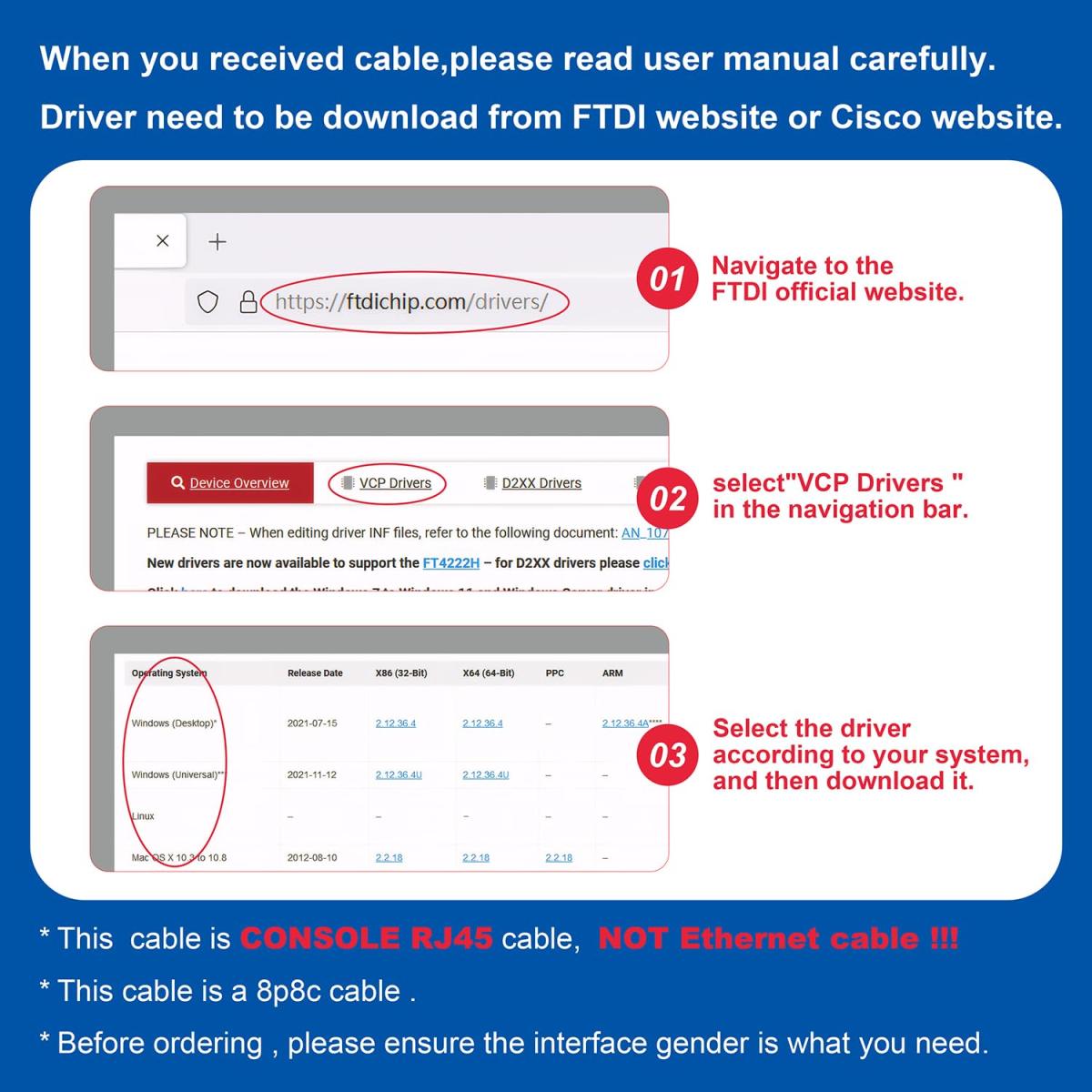

• Consecutive chip driver update support, FTDI will develop more suitable drivers based on market products
• Each product will display ftdi chip information on the computer’s USB COM port
• More efficient USB to RJ45 Console Port
• No more Mickey Mouse Prolific driver problems. No more DB-9 Adapters

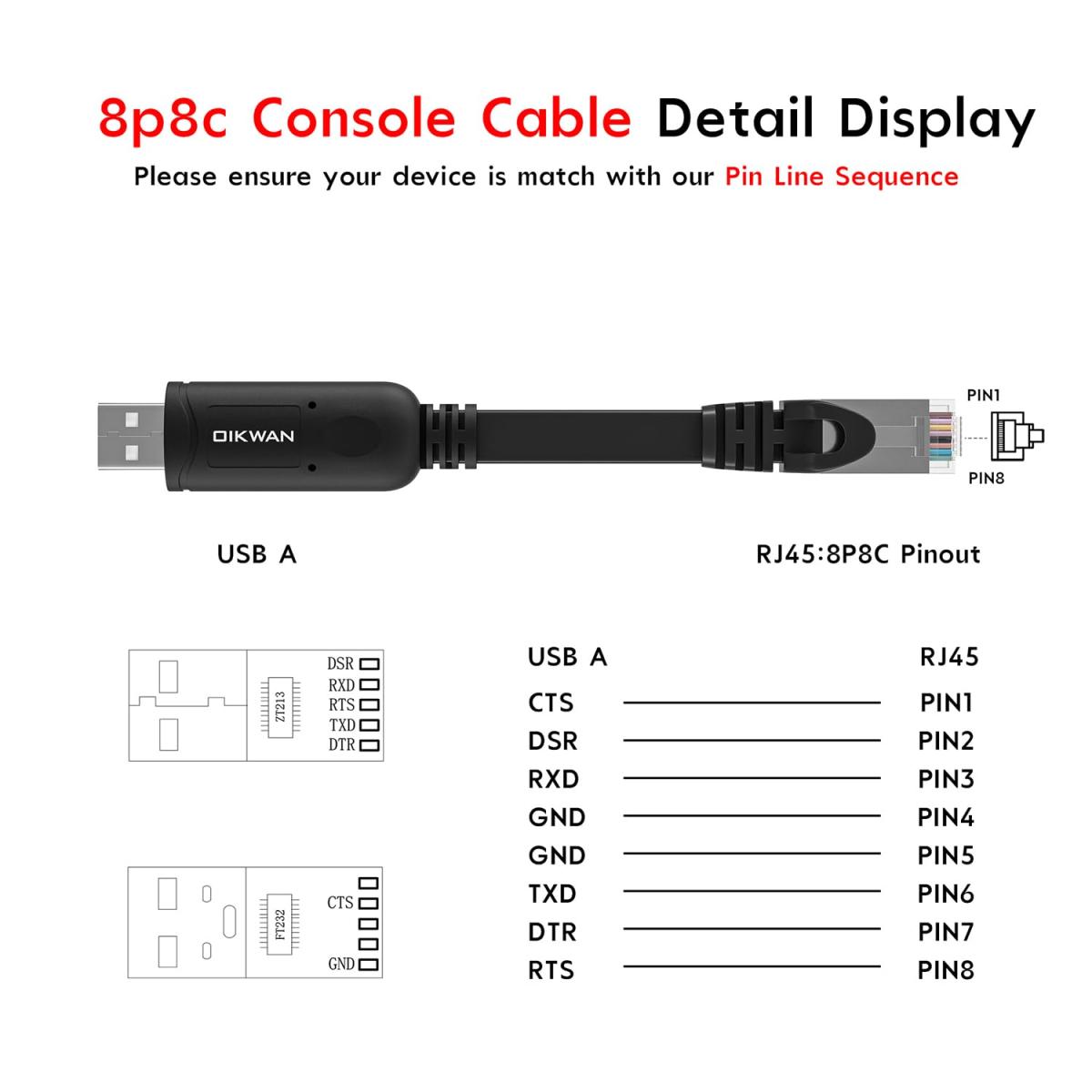

USB2.0 (1.1 compatible); CONSOLE's DTE Pinouts: RTS(1), DTR(2), TXD (3), GND(4), GND(5), RXD (6), DSR(7), CTS(8); so Moyina RJ45 cable is 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS. Cable length 1.8m/6ft, Maximum RS232 speed 500kbaud
